CDM APRS Connections
CDM To Agent Data Opentracker 2/3/USB APRS Pinouts
| CDM Accesosry Pin | Opentracker Pin (DB9 Male) | Signal |
|---|---|---|
| 5 | 1 | Audio Out |
| 8 | 2 | COR/RUS |
| 3 | 3 | PTT |
| 11 | 5 | Audio In |
| 7 | 6 | Ground |
| 13 | 7 | +12V |
Opentracker 3 Radio Configuration Info

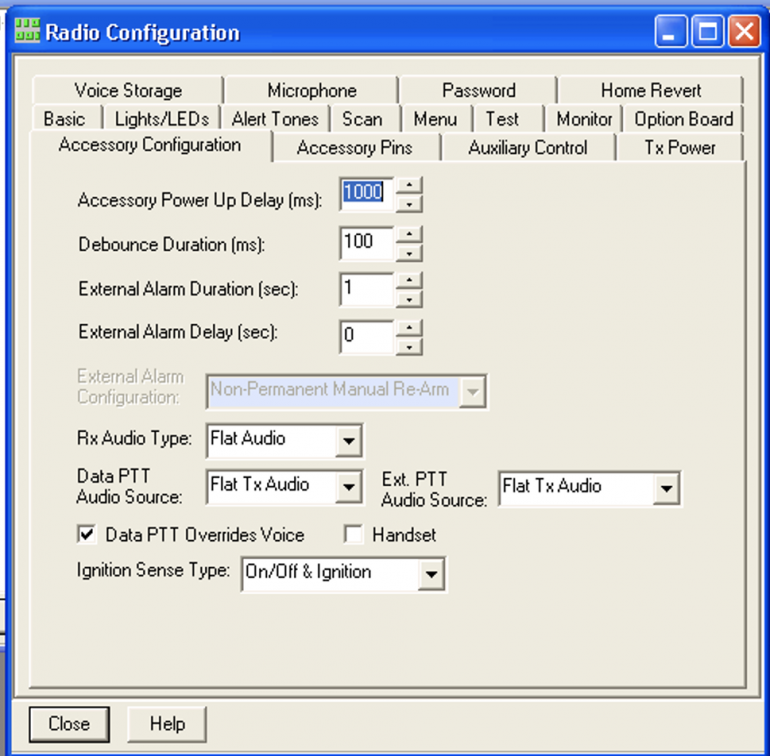

Accessory Configuration

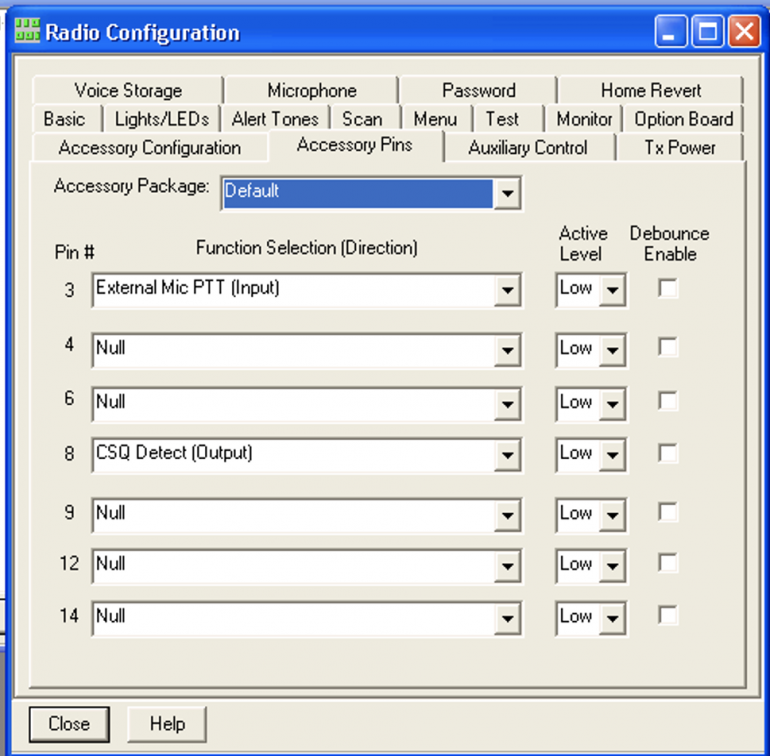

Accessory Pins:

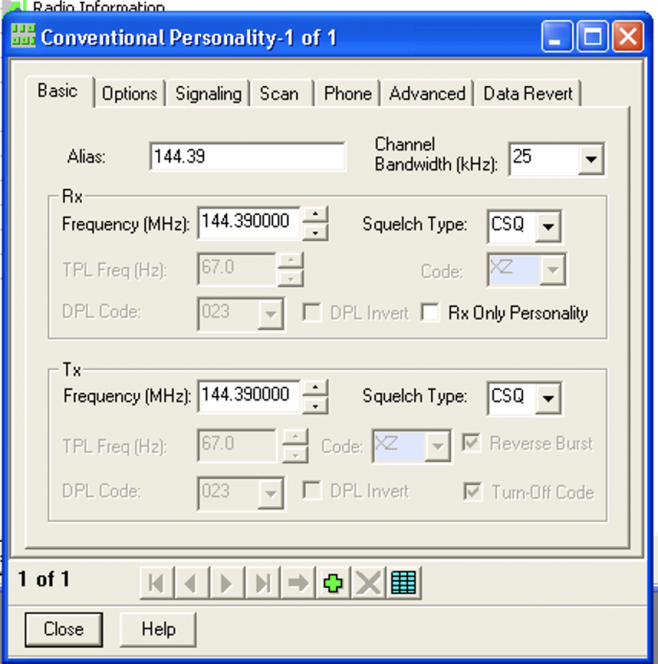

Conventional Personality:

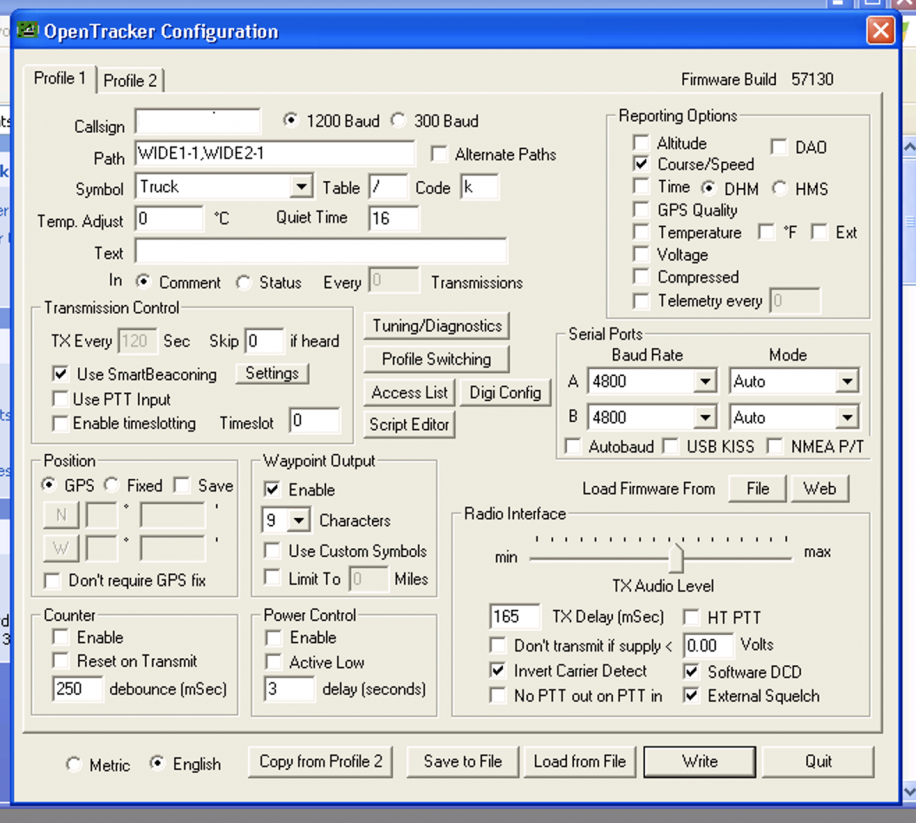

Opentracker Config
CDM To Microsat PLX Tracker Pinouts
| CDM Accessory Pin | PLX Tracker (DB9 Female) | Signal |
|---|---|---|
| 11 | 4 | Audio Out |
| 3 | 1 | PTT |
| 5 | 8 | Audio In |
| 7 | 5 | Ground |
| 13 | 9 | +12V |
CDM to PLXDigi Pinouts
| CDM Accessory Pin | PLX Tracker (DB9 Female) | Signal |
|---|---|---|
| 11 | 4 | Audio Out |
| 3 | 1 | PTT |
| 5 | 8 | Audio In |
| 7 | 5 | Ground |
| 13 | 9 | +12V |
CDM To Microsat WX3in1 Plus 2.0 Digipeater/igate Pinouts
| CDM Accessory Pin | WX3in1 Plus 2.0 (Minidin Male) | Signal |
|---|---|---|
| 11 | 4 | Audio Out |
| 3 | 6 | PTT |
| 5 | 2 | Audio In |
| 7 | 5 | Ground |

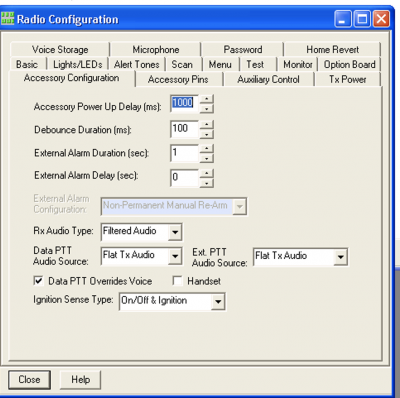

CDM Accessory Configuration for WX300 V2
CDM To Microsat ULARI Pinouts
| CDM Accessory Pin | ULARI (Minidin Male) | Signal |
|---|---|---|
| 5 | 2 | Audio Out |
| 3 | 6 | PTT |
| 11 | 4 | Audio In |
| 7 | 5 | Ground |
See Above for Radio Config Info
